PowerBox Cockpit SRS (Serial Receiver System)

Features:

• For Spektrum and Jeti satellites, Futaba S-BUS and Multiplex M-LINK receivers
• All channels from the receiver are transferred using a three-core lead
• Complete receiver redundancy, double the security
• Complete battery redundancy: two batteries, two electronic switches, redundant output voltage with dual regulation

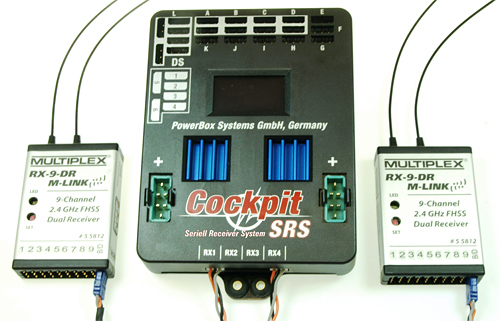

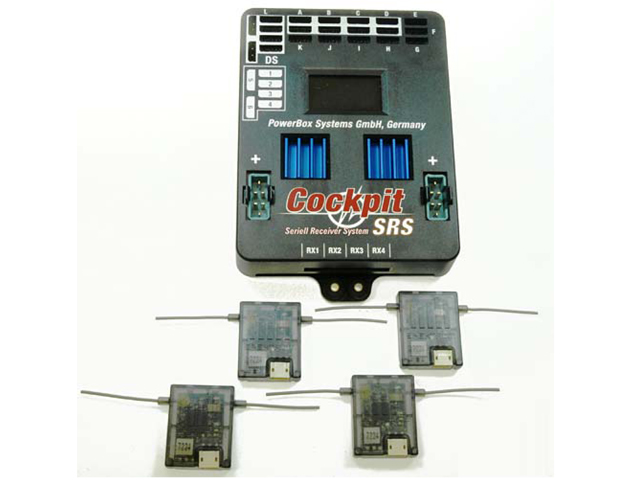

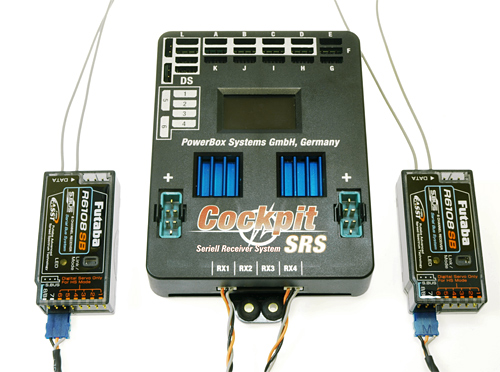

• Spektrum with four satellites, Futaba with two S-Bus receivers, Multiplex with two M-Link receivers, Jeti with two satellites
• High-resolution graphic OLED screen with 128 x 64 pixels
• Ultra-simple menu-based programming using the SensorSwitch
• Eleven channels + one channel for door sequencer
• Downlink channel transmission for Spektrum and MPX
• Unrestricted channel assignment for all output sockets, (channel output mapping)
• Synchronised servo outputs for totally simultaneous servo movements
• Four-stage user-variable servo frame rate (12 ms, 15 ms, 18 ms, 21 ms)
• Integral freely programmable door sequencer
• The unit saves receiver data, such as "lost frames" and "failsafes", for all connected receivers - whether Spektrum, Futaba, Multiplex, Jeti. Data can be read out after the flight on the OLED screen
• Four match-channels for two servos each; both servos individually variable
• 16-bit processor for high-speed, high-resolution signal processing
• Signal amplification for a total of 12 channels and 21 servos
• Direct transmission of battery voltages and capacities to the transmitter (downlink channels)
• On-screen voltage display for each battery separately, with bar indicator
• Residual capacity display for both batteries separately
• User-variable servo voltage: choice of 5.9 V or 7.4 V
• Minimum value memory shows any voltage collapses
• Large-area heat-sink for high regulator capacity
• Regulator monitor and regulator error indicator
• Supports three battery types: LiPo, LiIon, NiMH / NiCd, LiFePo
• Suppression of any servo feedback currents which might occur

Specification:

• Bus systems for seriell receivers from: Spektrum, Futaba, Multiplex, Jeti
• Operating voltage: 4,0 Volts to 9,0 Volts
• Power source:
  2 x two-cell LiPO batteries 7,4 Volts
  2 x five-cell NiCd or. NiMH batteries
  2 x two-cell LiFePo batteries 6,6 Volts (A123)
• Current drain:
  Power-on state approx. 130 mA
  Power-off state approx. 15 ﾵA
• Dropout voltage: approx. 0,25 V
• Max. seriell receiver current
  2 x 3 A (stabilised)
• Max. servo current:
  according to efficiency of cooling
  Peak 2 x 20 A
• Servo signal resolution: 0,5ﾵs
• Signal frame rate:
  User variable: 12ms, 15ms, 18ms, 21ms
• Screen: OLED 128 x 64 pixels, graphic
• Servo sockets: 21 sockets, 12 channels, 4 of them match-channels,
  single-channel door sequencer with 6 servo sockets
• Temperature range: - 30 ﾰC to + 75 ﾰC
• Dimensions: 110 x 72 x 24 mm
  (incl. base plate)
• Weight: 115 g
• SensorSwitch: 15 g
• EMV approval: EN 55014-1:2006
  CE approval: 2004/108/EG
