TX XG11 (modulo integrato 2,4GHz - DMSS) - RX RG831B - Batt. TX - Alimentatore di carica

ﾠ

Con questa nuova radio JRPROPO ha rotto lo stampo.
L'innovativo e accattivante design è fortemente influenzato dal robot giapponese modello Gundam .
Il trasmettitore XG11 ha 11 canali, una memoria per 30 modelli, una porta slot  per schede SD e 4 Modi di volo selezionabili via software M1,M2,M3,M4.
La selezione solito tipo tre-modello è disponibile per elicottero, aereo e aliante.
La radio viene fornita con un ricevitore DMSS RGD831B 8ch, Batteria Tx LiFe1400 mAh, caricabatterie e un BINDING plug.
Per memorizzare il set-up dei modelli, dati o aggiornamenti della radio scaricati da un PC, può essere utilizzata la porta slot per schede SD, inserendo una scheda SD (non fornita nella confezione).
La programmazione della XG11 è molto intuitiva e familiare a tutte le radio JR attualmente in produzione; anche quest'ultima, utilizza una combinazione tra un selettore rotativo e quattro pulsanti accanto al display retroilluminato.
I modellisti provenienti da diversi produttori di radio, troveranno molto facile il set-up della XG11 !
E' possibile selezionare da software 4 modi di volo: M1,M2,M3,M4.

La scatola contiene:

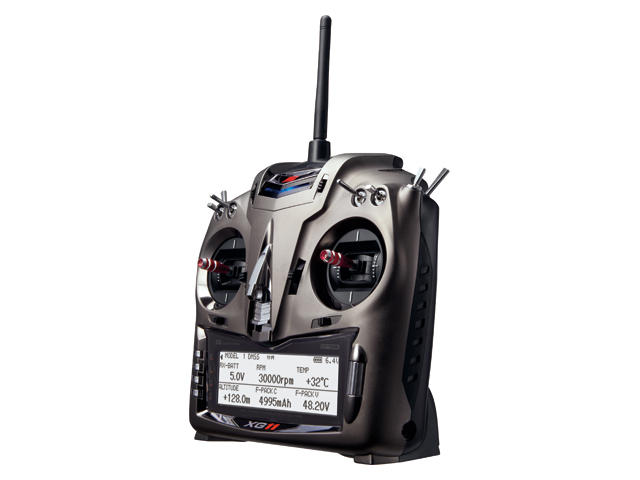

-Radio XG11 (2,4GHz - DMSS)

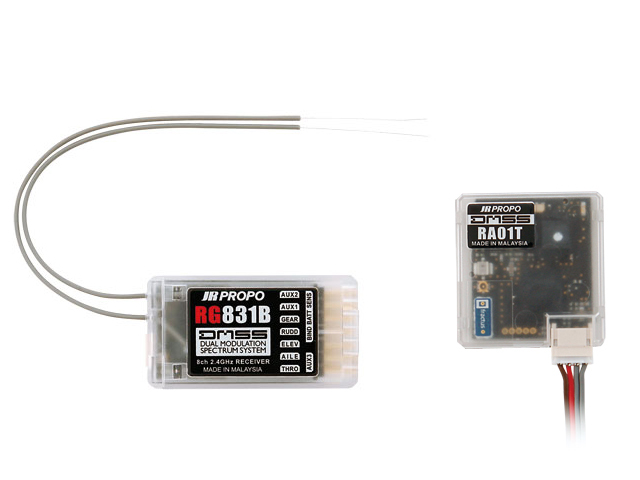

-1 Ricevente RX RG831B (2.4GHz) 8ch,
-1 Batteria TX LiFe 1400mA ,
-1 Alimentatore di carica NEC-A912A,
-Accessori

Product Description
The worldﾒs most advanced 11-Channel 2.4GHz Dual Modulation Spectrum System (DMSS).
Titanium Black colour plating offers a robust, durable finish.
Ergonomic modern case design offers the best grip, comfort and balance.
Easy viewing high resolution back lit display.
FH-SS Technology offers the best reliability in 2.4GHz technology.
Built-in telemetry function provides in-flight information.
Updated programming software satisfies the needs of expert Helicopter, Aeroplane and Glider Pilots.
JR Propoﾒs high quality XG11 has arrived on the RC scene.

Feature Highlights
3 Axis Gyro mode allows user friendly setting of Flybarless helicopters
Gyro sensitivity adjustment has been increased to 3 systems to suit 3 axis gyros. This is perfectly matched to the JR 3 Axis Gyro - the TAGS01.

ﾠ

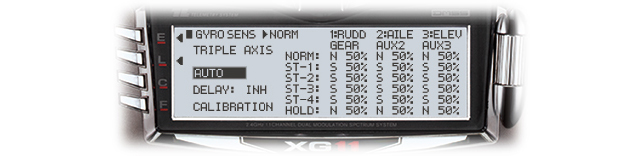

Screen shot of 3 axis Gyro setting

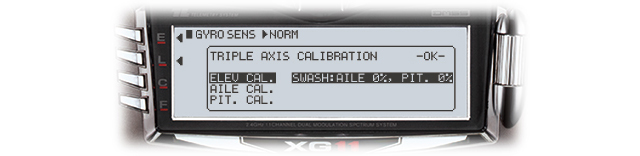

Screen shot of 3 axis Gyro calibration

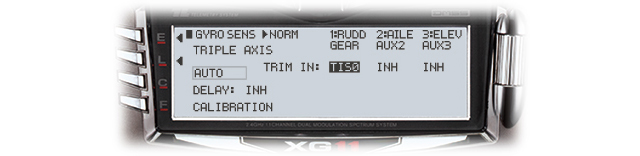

Screen shot of Gyro Trim in setting
Mixing Curve mid-point adjustment has been increased from 3 points to 5.
A more precise Curve can be set with 5 mid-points for the throttle and Pitch control on the aircraft. Various settings can be achieved depending on the flight condition or the pilot's desired control.

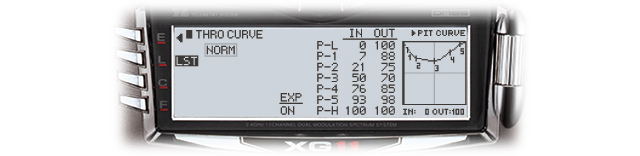

Screen shot of Throttle Curve
Multiple applications for Stick Position Switch
Stick position can be used as a switch for functions such as the timer or Dual rates, as well as the normal function of stick movement. Several switch setting can be arranged with stick travel, along with programmable dead band on each position.

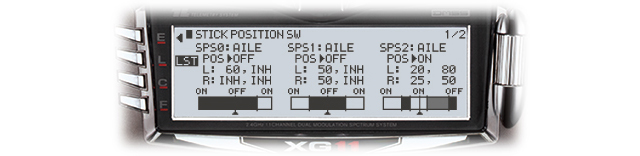

Screen shot of Stick Position Switch
Much anticipated, user friendly "Balance" function
In Airplane and Glider mode, Dual Aileron or multiple servo setups can be precisely programmed with the "Balance" function using a Multi point (5 mid point) curve. *ACROﾕGLIDER only.

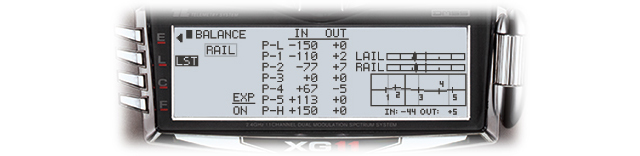

Screen shot of Balance Function
User friendly Device Select
Not only the Back slide levers or toggle switches, but digital trim switches can be allocated as Input devices. This flexible interface allows comfortable, easy use of the transmitter.

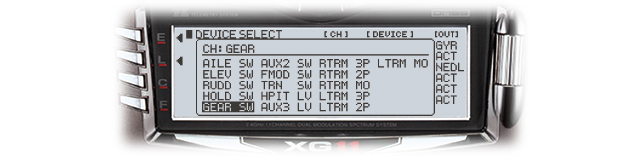

Screen shot of DEVICE SELECT
*Data conversion can be only carried out for matching functions, in numerical values only.

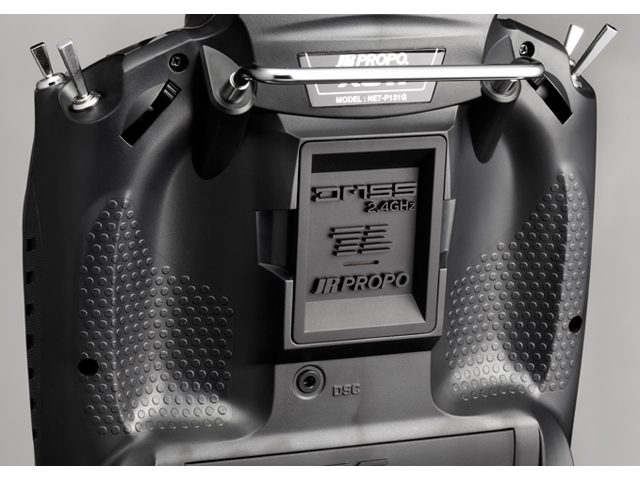

Titanium Black colour plating offers a robust, durable finish.

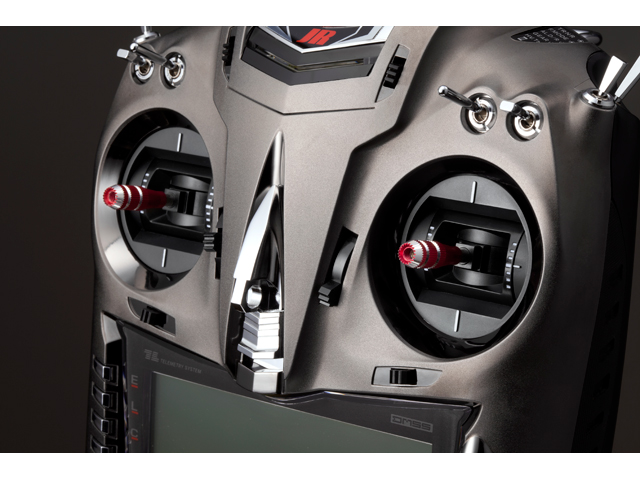

Supplied with red anodized stick heads:

An ergonomic modern case design offers the best grip, comfort and balance in your hands
