PROFESSIONAL - CENTRALINA POWER BOX CON INTERRUTTORE

The PowerBox Professional is a modern power supply system which contains all the electronic components required for today's receivers, servos and models. Every component needed for a totally secure airborne power supply, including ICs, micro-controller and electronic circuits, is duplicated!

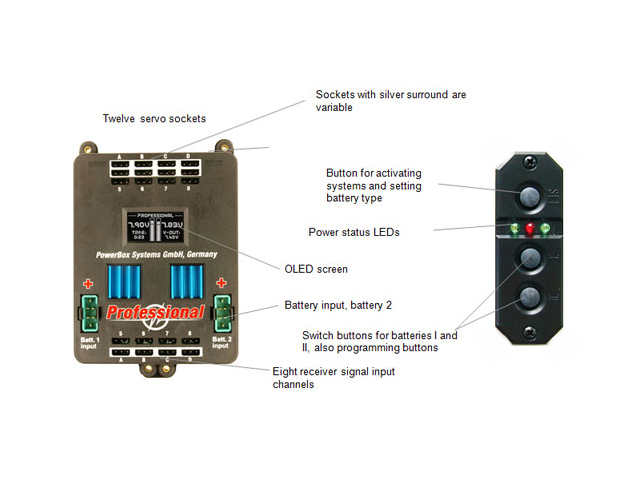

This High-End power supply system features an outstanding range of the latest innovations, including a high-resolution graphic OLED screen, four match-channels catering for eight servos, and the facility to bind to the downlink channels of various manufacturers.



Features

• High-resolution graphic OLED screen with 128 x 64 pixels
• Ultra-simple menu-based programming system using the Sensor-Switch Signal amplification for a total of eight channels and twelve servos
• Synchronised servo output: all servos operate totally synchronously
• 16-bit processor for high-speed, high-resolution signal processing
• Four match-channels, each for two servos; all servos separately variable
• Double regulated output voltage
• Sockets for Multiplex MSB and Spektrum downlink bus systems, update capability with USB Interface Adapter for other systems
• Direct transmission of both battery voltage values to the transmitter
• Voltage display for each battery separately
• Servo voltages can be set to 5.9 V or 7.4 V
• Minimum value memory displays any voltage collapses
• Combined heat-sinks permit high regulator power
• Voltage regulator monitor
• Supports four battery types: LiPo, LiFePo, NiMH, NiCd
• Suppression of any servo feedback currents which may occur
• Can also be switched on and off using the MagSensor Update-capable using the PowerBox USB Interface Adapter

Specification

• Operating voltage: 4,0V - 9,0V
• Power supply: 2 x 5s NiMH/NiCd, 2s LiPo, 2s LiFePo
• Current drain: approx. 130mA
• Idle current: approx. 15ﾵA
• Output voltage: 5,9V or 7,4V stabilised
• Max. load current: Peak 2x20A
• Dropout voltage: 0,3V
• Receiver: 1 via parallel inputs
• Supported telemetry systems: DSM2/DSMX, M-Link
• Channels: 8, 4 of them programmable
• Servo outputs: 12, 8 of them programmable
• Servo signal resolution: 0,5ﾵs
• Selectable signal frame rates: 9ms, 12ms, 15ms, 18ms, 21ms
• Integral screen: OLED graphic panel 128x64 pixels
• Dimensions: 110x72x24
• Weight incl. switch: 130g
• Temperature range: -30ﾰC to +75ﾰC
• EMV approval: EN 55014-1:2006
• CE: 2004/108/EG
