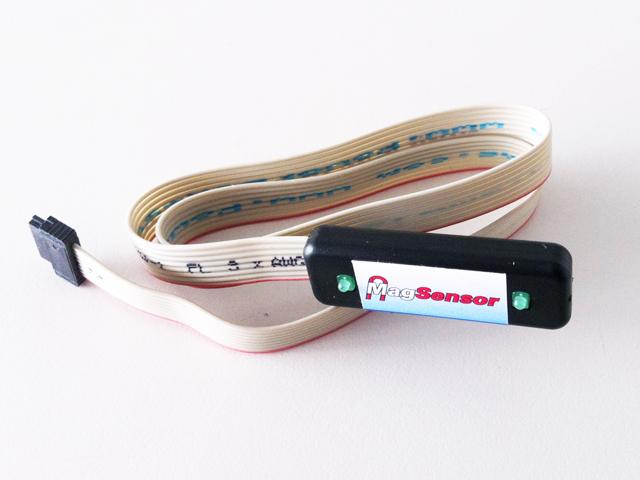

PowerBox-Systems - MAGSENSOR INTERRUTTORE MAGNETICO CON CHIAVETTA MAGNETICA PER ACCENSIONE BATTERIE - COMPATIBILE CON CENTRALINE "ROYAL SRS" E "CHAMPION SRS" CON CONNETTORE NERO - CABLATO CON CAVO DA 40cm

INTERRUTTORE MAGNETICO MAGSENSOR CON CHIAVETTA MAGNETICA PER ACCENSIONE BATTERIE - COMPATIBILE CON CENTRALINA "ROYAL SRS" E "CHAMPION SRS" - CONNETTORE NERO - CABLATO CON CAVO DA 40cm

Specification:

• Energy source:
  From the connected PowerBox
• Current drain:
  Power-on state approx. 10 mA
  Power-off state approx. 20 ﾵA
• Temperature range: - 30 ﾰC to + 75 ﾰC
• Weight: 10 g
• EMV approval: EN 55014-1:2006
• CE approval: 2004/108/EG
• WEEE Reg. No.: DE 639 766 11

The MagSensor represents an alternative method of operating and switching our PowerBox battery backers. The circuit is based on modern extremely sensetive, zero-contact "Hall sensors", which respond to a defined magnetic field by activating the electronic switches in the PowerBox. The Hall sensors do not switch the cur-rent, but simply pass on the switching signal.

This accessory is suitable for all PowerBox systems, regardless of age, which are designed to be switched on and off using the SensorSwitch. The basic purpose of the MagSensor is to switch the dual power circuits on and off, but it can also be used to reset the capacity display fitted to more recent systems, if this is an integral feature of the PowerBox. The SensorSwitch must still be used for programming servos and carrying out set-up tasks within the PowerBox's programming menu. The particular advantage of the MagSensor is tha scale pilots can exploit all the advantages of our redundant battery backer systems, but without an exposed On / Off switch.

The magnetic trigger is powerful enough to penetrate reliably through thick GRP / CFRP walls panels, even if they are several millimetres thick.

In addition to a pair of green LEDs for visual monitoring, the MagSensor features a supplementary Piezo sounder, which confirms the On / Off switching process by means of beeps of different pitch.

The ribbon cable is the same standard length as that of the SensorSwitch.

The MagSensor is simply plugged into the PowerBox instead of the Sensor-Switch: remove the SensorSwitch, and connect the MagSensor to the red socket on your PowerBox battery backer in its place. The MagSensor is ready for use immediately.

The MagSensor still requires you to activate botch power circuits individually - as with all PowerBox systems. The reason behind this feature is that the Power-Box contains two redunant switching and regulatory systems. Seperate control gives you the opportunity to check each of the PowerBox's power circuits individually - and this also applies to the MagSensor.
